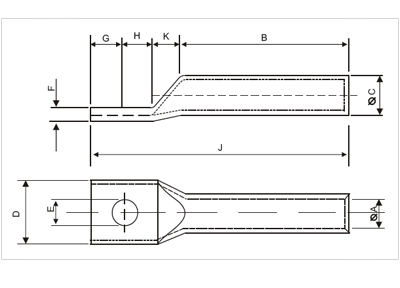

Aluminium Tubuler xlpe cable lugs (for heavy duty xlpe cable conductors)




Size mm² E A C D F B K H G J ASCON’S
CAT. NO
25 8.2 7.2 9.6 14.0 2.4 41 7 12 9 69 AALS-17
35 8.2 8.3 11.1 16.0 2.8 50 7 11 11 79 AALS-18
50 10.2 10.1 13.5 19.5 3.4 49 8 13 11 81 AALS-19
70 10.2 10.2 14.5 20.5 4.3 62 8 13 13 96 AALS-20
95 12.7 12.0 16.9 23.5 4.9 73 8 14 14 109 AALS-21
120 12.7 13.7 19.0 26.5 5.3 73 11 15 15 114 AALS-22
150 12.7 15.1 21.1 29.5 6.1 83 11 17 17 128 AALS-23
185 12.7 16.6 23.9 33.0 7.3 83 12 18 18 131 AALS-24
225 12.7 18.6 26.1 36.0 7.5 86 14 20 20 140 AALS-25
240 12.7 19.3 27.2 37.5 7.9 86 14 22 22 144 AALS-26
300 20.3 21.8 30.2 42.0 8.4 89 14 27 27 157 AALS-27
400 20.3 10.2 34.8 48.0 9.8 113 13 30 30 187 AALS-28
500 20.3 25.0 39.1 54.0 10.9 125 15 32 32 205 AALS-29
630 20.3 28.2 44.4 61.0 12.7 140 16 34 34 225 AALS-30
800 20.3 35.7 49.5 68.0 13.8 147 25 39 39 250 AALS-31
1000 20.3 41.0 56.0 77.5 15.0 160 30 45 45 280 AALS-32

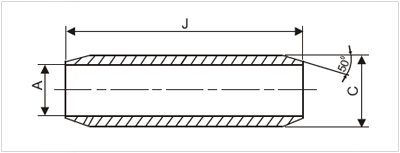

Aluminium Tubular xlpe in-line connectors (for heavy duty xlpe cable condutors)




Size mm² A C J ASCON’S CAT. NO
25
7.2
9.6
82
AALS-1
35 8.3 11.1 90 AALS-2
50 10.1 13.5 100 AALS-3
70 10.2 14.5 104 AALS-4
95 12 16.9 108 AALS-5
120 13.7 19 112 AALS-6
150 15.1 21.2 116 AALS-7
185 16.6 23.9 128 AALS-8
225 18.6 26.1 136 AALS-9
240 19.3 27.2 148 AALS-10
300 21.8 30.2 160 AALS-11
400 25 34.8 182 AALS-12
500 28.2 39.1 190 AALS-13
630 31.7 44.4 200 AALS-14
800 35.7 49.5 225 AALS-15
1000 41 56 250 AALS-16
